品牌： |
天津一洋五金Driflex |
所在地： |
天津 |
起订： |
≥1 根 |
供货总量： |
8000 根 |
有效期至： |
长期有效 |
型号： |
DN15-100 |
材质： |
橡胶 |
阻燃特性： |
有 |
详情介绍

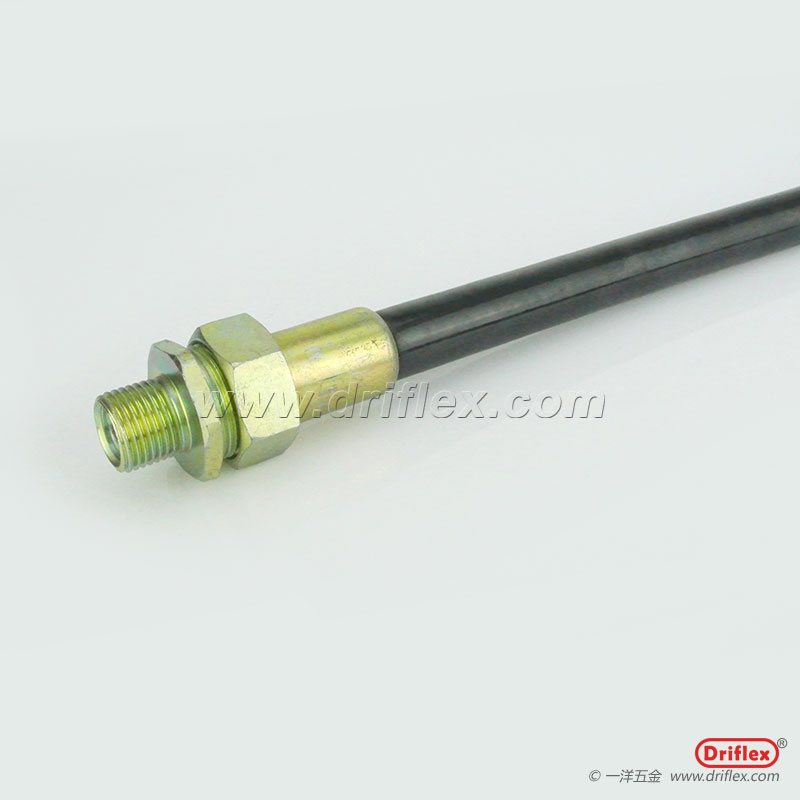

橡胶防爆挠性连接管
|
型号
Part No. |
管内径
I.D(mm) |
接头管螺纹
（G") |
长度
Length(mm) |
弯曲半径
Bending Radius(mm) |
| EXR700xG1/2" | 15.0 | 1/2" | 700 | 80 |
| EXR1000xG1/2" | 15.0 | 1/2" | 1000 | 80 |
| EXR700xG3/4" | 20.0 | 3/4" | 700 | 110 |
| EXR1000xG3/4" | 20.0 | 3/4" | 1000 | 110 |
| EXR700xG1" | 25.0 | 1" | 700 | 145 |
| EXR1000xG1" | 25.0 | 1" | 1000 | 145 |
| EXR700xG1‐1/4" | 32.0 | 1‐1/4" | 700 | 160 |
| EXR1000xG1‐1/4" | 32.0 | 1‐1/4" | 1000 | 180 |
| EXR700xG1‐1/2" | 40.0 | 1‐1/2" | 700 | 210 |
| EXR1000xG1‐1/2" | 40.0 | 1‐1/2" | 1000 | 210 |
| EXR700xG2" | 50.0 | 2" | 700 | 250 |
| EXR1000xG2" | 50.0 | 2" | 1000 | 250 |
| EXR700xG2‐1/2" | 70.0 | 2‐1/2" | 700 | 350 |
| EXR1000xG2‐1/2" | 70.0 | 2‐1/2" | 1000 | 350 |
| EXR700xG3" | 80.0 | 3" | 700 | 400 |
| EXR1000xG3" | 80.0 | 3" | 1000 | 400 |
| EXR700xG4" | 100.0 | 4" | 700 | 500 |
| EXR1000xG4" | 100.0 | 4" | 1000 | 500 |
适用范围：
1区 2区危险场所。
ⅡA、ⅡB、ⅡC 类爆炸性气体环境。
产品特点：
具有耐燃、耐腐蚀、耐水、耐老化、挠性良好、结构牢固、工作可靠等特点。 橡胶防爆挠性连接软管长度，可根据用户需要特殊加工。 配套碳钢内丝、外丝接头螺纹标准有: 英制G螺纹、美标NPT螺纹、 公制ISO等。
标注螺纹规格时应注明内、外丝螺纹。 产品符合GB3836‐2000,IEC60079标准要求。
